Hiyunton H328 LCD DTMT Two-way Radio

時間:2014-02-21 00:00來源:m.by236.com 作者:Hiyunton 點擊:
HIYUNTON H328 ,its a kind of professional two-way radio. With 256 channels, 3 scanning lists and DTMF software codes ,it helps the users easily to achieve the accurate call and efficient group management .H328 adheres the ideal of human co

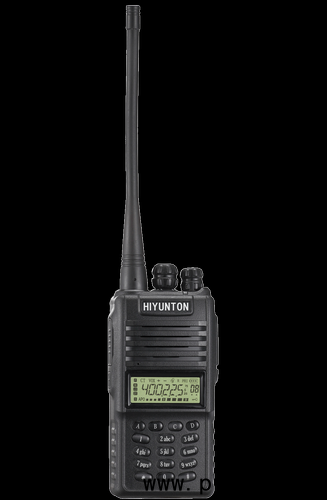

H328_en_web



HIYUNTON H328 ,it's a kind of professional two-way radio. With 256 channels, 3 scanning lists and DTMF software codes ,it helps the users easily to achieve the accurate call and efficient group management .H328 adheres the ideal of human computer exchange,and with the powerful manual programming function, digital keyboards and LCD display,it allows the user to set the system function and parameter on the machine and brings to the user rich and high quality communication experience .

Features:

* Accord with the USA military standard MIL-STD-810-C/D/E/F, CE,FCC and IP54.

* 2050 mAh high capacity Li-ion battery

* 3 call lists

* 256channels

* Show the battery power

* High /low power conversion

*Low battery warning

*Time out timer (TOT)

*Busy channel lockout

*CTCSS/CDCSS

*Tail elimination

*9 levels squelch optional

*Channel scanning

*Manual programming

*DTMF software code

*Selective calling feature

*Companding

*VOX

*Cable cloning capable

*ANI

*12.5/25KHz channel spacing


Specifications:

General

HIYUNTON-H328

Frequency Range

VHF:136-150MHz       150-174MHz
UHF: 350-370MHz      370-390MHz
          400-440MHz      440-480MHz

Channel Capacity

256

Channel Spacing

12.5 /25 KHz

Operating Voltage

7.4V

Battery Capacity

2050mAh (Li-ion)

Battery Life (5-5-90 Duty cycle) 2050mAh Li-ion

more than 18 hours

Frequency Stability

±5ppm

Operating Temperature

-20~+50

Antenna Impedance

50Ω

Demensions(with battery, without antenna)

125mm×56mm×35mm

Weight(with antenna & battery)

300g

Transceiver

HIYUNTON-H328

RF Power Output

5W/2WVHF 4W/2WUHF

Modulation

16KΦF3E/8KΦF3E

Spurious and Haronics

≤-21dBm

FM Noise

40dB

Audio distortion

≤5 %

Receiver

HIYUNTON-H328

Sensitivity

0.25/0.28 μV

Adjacent Channel Selectivity

≥55/50dB

Intermodulation

≥50dB

S/N

45/40dB

Audio Power Output

500mW

Audo distortion

≤5%
